Indentation Device Safety Test Equipment IEC60811 SUS304 For Insulation Sheaths

Brand Name : PEGO GROUP

Model Number : PG-IDD

Certification : Third-Lab Calibration Certificate

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 100 sets/months

Delivery Time : 7 working days

Packaging Details : carton

Standard : IEC60811 Figure 1

Application : for testing insulation and sheaths

Name : insulation and sheaths high temperature pressure test device

Supporting mandrel : flat plate, 90 degree plate, 120 degree plate

Blade size : 0.7±0.01mm thickness, 30mm±0.1mm width

Material : stainless steel

Contact Now

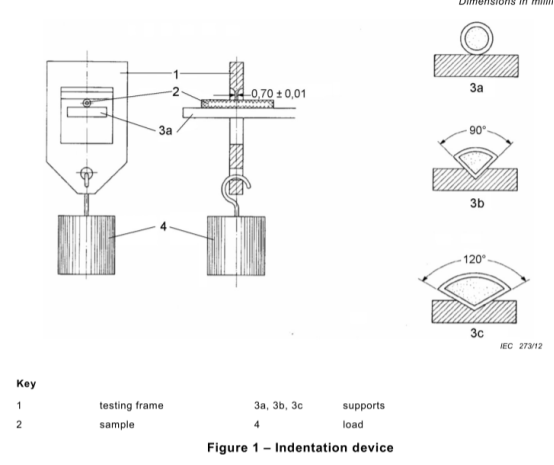

IEC60811 Figure 1 Indentation Device for Testing Cable Insulation Sheaths



1. Introduction

The indentation device is designed according to IEC60811-508:2012 figure 1, the device is consisted by blade, supporting mandrel and loads.It is applied to test the indentation produced by the insulation sheath of the plug or cable under high temperature and pressure, the device should work with oven.



2. Parameter

Test station 3
Blade thickness 0.7±0.01mm
Blade width 30mm±0.1mm
Load

1g*3, 2g*3, 5g*3, 10g*3, 20g*3, 50g*3, 100g*3, 200g*3, 500g*3, 1000g*3

Made of stainless steel
Application ≥0.4mm and ≤55mm insulation sheath
Supporting mandrel Flat plate, 900 V slot plate, 1200 V slot plate
Weight tray Diameter φ100mm
Material of device SUS304
Dimension 400mm*220mm*330mm
Weight Approximate 20kg



3. Picture

 Indentation Device Safety Test Equipment IEC60811 SUS304 For Insulation Sheaths
