Loading Device Environment Test Equipment IEC60695-10-2 For Indentation Distance

Name: Loading Device Environment Test Equipment IEC60695102 For Indentation Distance
Brand: PEGO Group
Price: 1 USD

Brand Name : PEGO Group

Model Number : PG-BPT

Certification : Third-Lab Calibration Certificate

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets/months

Delivery Time : 7 working days

Packaging Details : carton

Standard : IEC60695-10-2

Name : ball pressure test apparatus

Material : stainless steel

Function : for testing indentation distance

Configuration : pressure ball, weight, test specimen support

Warranty : 12 months

Contact Now

IEC60695-10-2 Loading Device for Testing indentation Distance

1. Introduction

The load device is consisted of a 5mm±0.05mm diameter pressure ball attached to a system of weights designed to apply a downward force equivalent to a 20N±0.2N load including the mass of the pressure ball. The loading device shall work with a heating oven.

2. Standard conforms to: IEC60695-10-2, IEC60335, IEC60601

3. Test methord

To measure and to verify the dimension "d" of the indentation left by a steel ball applied on a test specimen with a specified force and at a specifified temperature. Dimension "d" is the largest distance that can be measured across the indentation from one clearly defined edge of the indentation to another. The result is presented as a pass if dimension "d" does not exceed 2.0mm.

4. Parameters

Ball diameter	5mm (R2.5mm)
Test Pressure	20N±0.2N
Material	Stainless Steel
Test specimen support	a. sizes: Φ50mm-length 100mm, b. Sharp: cylinder sharp, with a smooth flat surface c. rigidly and has sufficient strength, with temperature measuring hole

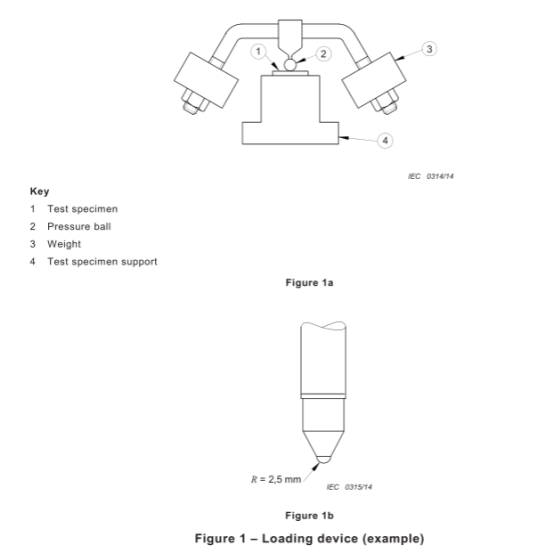

5. Drawings
