CTI / PTI Electrical Safety Test Equipment Stainless Steel Tracking Index Test Apparatus

Name: CTI PTI Electrical Safety Test Equipment Stainless Steel Tracking Index Test Apparatus
Brand: PEGO
Price: 3700 USD

Brand Name : PEGO

Model Number : PG-TI

Certification : Third-lab calibration certificate

Place of Origin : China

MOQ : 1 set

Price : USD3700-USD4500

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 25 working days

Packaging Details : each packed in a wooden case

Standard : IEC60112,UL746A

Material : Stainless steel

Working Studio : 0.1CBM ( customizable 0.5CBM or 0.75CBM according to different standard)

Dimension : 630mm(W)*390mm(D)*750mm(H)

Usage : CTI and PTI test

Electrodes material : ≧99% purity platinum (Pt)

Contact Now

IEC60112 Stainless Steel Tracking Index Test Apparatus applied to CTI and PTI Test

1. Introduction

The tracking index tester is used to determinate of the proof and comparative tracking indices of solid insulating materials on pieces taken from parts of equipment and on plaques of material using alternating voltages. It is applied to evaluate the leakage resistance (CTI and PTI) of the surface of insulating material and designed on the basis of IEC60112 <Method for the determination of the proof and comparative tracking indices of solid insulating materials>, UL746A, GB.T4207, gb4706.1 and TMD 3628-92. Tracking index test apparatus is mainly used in the industries of lighting appliance, low voltage appliance, household appliance, motor, electronic appliance, instrument and etc.

2. Parameter

Electrodes material	≧99% purity platinum (Pt)
Angle	60°±5°
Electrode voltage	100~600V (48~60Hz) adjustable, the voltage would decrease 10% @ 1.0±0.1A short current
Electrode distance between test specimen	4.0mm ± 0.1mm
Electrode pressure exerted on the test specimen	1.0N±0.05N
Height of the drops	30~40mm adjustable
Times of the drops	0~9999 times adjustable
Interval of the drops	30s±5s
Leakage indicator	During the testing, the short-circuit current is more than 0.5A to keep 2 seconds, then shut off current, it show the sample not pass
Standard	IEC60112, GB/T4207, GB4706.1
Working studio	0.1CBM ( customizable 0.5CBM or 0.75CBM according to different standard)
Outer dimension	630mm (W)390mm (D)750mm (H)

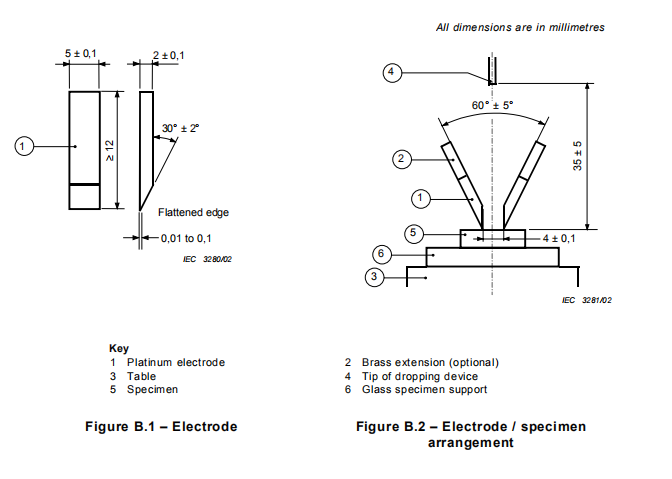

3. Figures
